Welded Mire Mesh Fabric 4–16 mm for Structural Reinforcement

Welded Wire Reinforcement Mesh (WWR) is a prefabricated steel mesh made by welding smooth or ribbed steel wires into square or rectangular grids. It complies with standards such as ASTM A1064 and BS 4483, ensuring consistent strength and performance. Common wire diameters range from 4 mm to 16 mm, with mesh openings typically 100 × 100 mm, 150 × 150 mm, or 200 × 200 mm, and custom spacing available. Panels are supplied in widths 2.0–2.4 m and lengths 6–12 m, with options for black, galvanized, or epoxy-coated finishes for corrosion protection. WWR is widely used in reinforced concrete slabs, pavements, precast panels, bridge decks, tunnels, and industrial floors, providing cost-effective reinforcement and reduced installation time. Its prefabricated design improves structural performance and ensures uniform wire placement, making it ideal for residential, commercial, and infrastructure projects.

Material and Standards

• Material: Low carbon steel Q195/Q235, high-strength steel wire
• Surface Finish: Black (plain), pre-galvanized, hot-dip galvanized, epoxy-coated
• Standards: ASTM A1064/A1064M, BS 4483, ISO, EN specifications

Wire Diameter Range

• Standard Range: 4.0 mm – 16.0 mm
• Common Sizes: 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm, 16 mm
• Mesh Opening / Spacing: Standard Spacing (center to center), 100 × 100 mm, 150 × 150 mm,200 × 200 mm, custom Range: 50 mm – 300 mm

Panel Dimensions

• Width: 1.0 m – 2.4 m (standard 2.0–2.4 m)
• Length: 4.0 m – 12.0 m (standard 6.0–12.0 m)
• Panels manufactured to project-specific sizes available

Roll Dimensions (Light Mesh)

• Width: 1.0 m – 2.4 m
• Length: 25 m – 50 m rolls
• Applicable Wire Diameter: ≤ 6 mm

Reinforcement Types

• Plain Welded Wire Mesh: Smooth wire for standard applications
• Deformed Welded Wire Mesh: Ribbed wire for improved bonding
• Mesh Shape: Square (equal spacing) and Rectangular (unequal spacing)

Applications

• Reinforced concrete slabs, walls, pavements
• Bridge decks, tunnel linings, airport runways
• Precast elements and industrial flooring

Common Specifications Table

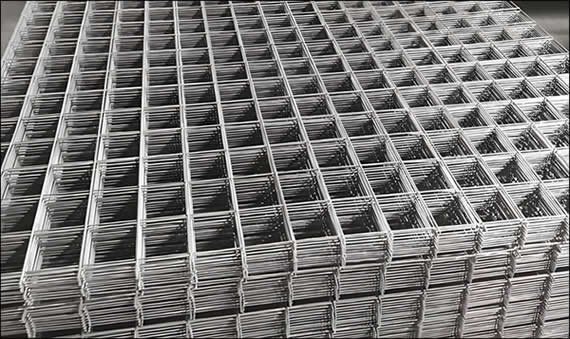

galvanized welded wire mesh for reinforced concrete

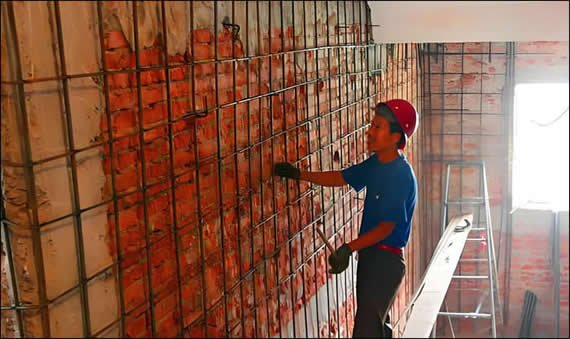

welded wire reinforcement mesh for concrete slabs

Plain Welded Wire Reinforcement Mesh | 4–16 mm Smooth Wire for Concrete

Plain welded wire reinforcement mesh is made from smooth low-carbon steel wires welded at right angles. Wire diameters range from 4–16 mm, with mesh spacing 50–300 mm. Panels are typically 2.0–2.4 m wide and 6–12 m long. It complies with ASTM A1064 and BS 4483 standards. Used for concrete slabs, walls, pavements, industrial flooring, and precast construction.

Deformed Welded Wire Reinforcement Mesh | Ribbed Wire Panels for Concrete

Deformed welded wire mesh uses ribbed wires for improved bonding with concrete. Wire diameters 4–16 mm, mesh spacing 50–300 mm. Manufactured per ASTM A1064 and BS 4483, it enhances load transfer in bridge decks, precast elements, industrial flooring, and tunnel linings.
