Knitted Woven Wire Mesh for Industrial Filtration and Separation Applications – Single or Double Layered, Compressed or Rolled Forms

Mallas Wire Mesh Manufacturing Co. is a manufacturer of knitted wire mesh. Our knitted wire mesh includes stainless steel, copper, aluminum, galvanized steel, and nickel alloys. It is made by interlocking metal wires into a flexible, resilient mesh structure that provides excellent filtration, separation, and damping performance. The mesh can be single or double layered, compressed or rolled, and supplied in rolls, pads, or gaskets according to application needs. With features such as high temperature resistance, corrosion resistance, and durability, knitted wire mesh is widely used in industrial filtration, gas-liquid separation, mist elimination, noise reduction, and electromagnetic shielding. It is also an ideal material for exhaust gas purification, vibration dampening, and sealing systems. Mallas Wire Mesh Manufacturing Co. offers custom sizes, wire diameters from 0.1 mm to 0.5 mm, and mesh densities tailored to specific industries including automotive, chemical, and aerospace applications.

Knitted Wire Mesh Type

• Single Knitted Wire Mesh: Made from a single strand of metal wire, this mesh offers flexibility and lightweight structure. It is commonly used for air and liquid filtration, mist elimination, and vibration damping applications.
• Double Knitted Wire Mesh: Formed by interlocking two layers of wire mesh for added strength and density. Ideal for heavy-duty filtration, demisters, and separation systems requiring higher load capacity.
• Compressed Knitted Mesh Pad: Compressed into discs or pads for use in gas-liquid separators and silencers. Provides excellent resistance to high temperatures and pressure.
• Knitted Mesh Demister Pad: Designed to capture fine liquid droplets from gas streams, ensuring efficient mist removal in chemical and refinery processes.
• Knitted Mesh Shielding Tape: Used for electromagnetic and radio frequency interference shielding in electrical and electronic equipment.
• Knitted Wire Mesh Roll: Supplied in continuous rolls for easy cutting and forming, suitable for filtration, sealing, and insulation applications.
• Knitted Mesh Gasket: Formed into rings or custom shapes to provide durable sealing, shock absorption, and EMI/RFI shielding performance in machinery and engines.

Common Specifications

• Wire Diameter Range: Available in wire diameters from 0.10 mm to 0.50 mm.
• Mesh Width: 100 mm, 150 mm, 300 mm, 400 mm, and 600 mm, with custom widths available upon request.
• Mesh Length: Rolls of 10 m, 20 m, 25 m, 30 m, or customized lengths for industrial use.
• Material: Stainless Steel 304, 316, 321, Copper, Brass, Aluminum, and Galvanized Steel.
• Density and Weight: Mesh densities range from 300 g/m² to 800 g/m².
• Mesh Type and Structure: single or double knitted structure, optionally flattened, compressed, or rolled.
• Roll Diameter: Range from 100 mm to 500 mm.
• Opening Size: Opening sizes vary between 1 mm and 6 mm, adjustable according to specific filtration or separation needs.
• Operating Temperature: Knitted wire mesh can withstand temperatures from -200°C to +600°C, depending on the selected alloy.
• Product Forms: Supplied in various forms including rolls, pads, gaskets, rings, and demister pads.

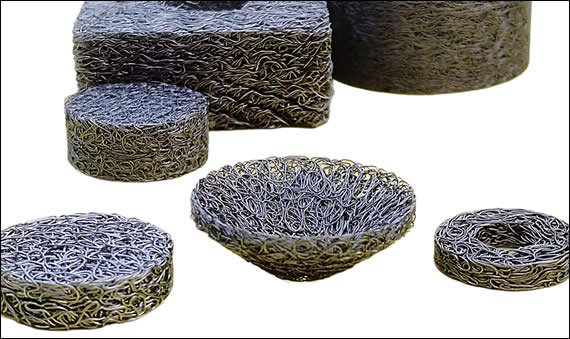

Knitted mesh gasket is constructed from interlocked metal wire for sealing and EMI shielding.Wire diameters vary between 0.08 mm and 0.25 mm in stainless steel, Monel, or tinned copper.

Knitted Wire Mesh Roll in 10 m, 30 m, or 50 m lengths for flexible installation.

Compressed knitted Wire mesh filter disc stainless steel 20–150 mm diameter

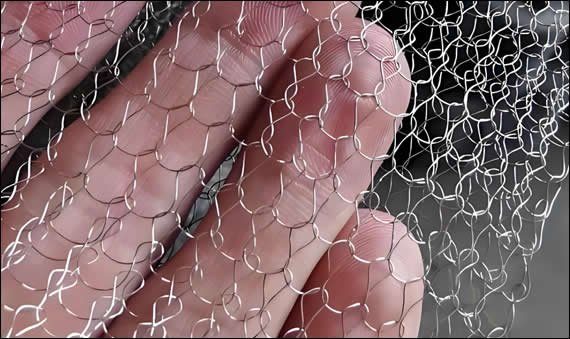

Single knitted wire mesh is made from stainless steel or galvanized wire. The mesh diameter ranges from 0.10 mm to 0.35 mm for precise filtering.
