Micronic Wire Cloth and Precision Woven Stainless Steel Mesh for Ultra-Fine Filtration and Industrial Applications

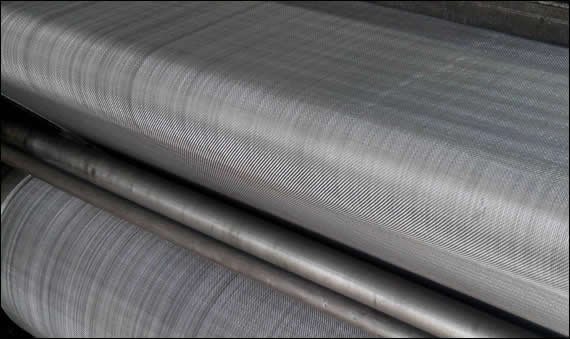

Micronic Wire Cloth is a precision-woven stainless steel mesh designed for ultra-fine filtration and separation. Classified by weave type and mesh count, it is available in plain dutch weave, twilled dutch weave, and reverse dutch weave, offering micron ratings from 1 µm to 200 µm. These cloths are manufactured with high-strength stainless steels such as 304, 316, and 316L, ensuring durability and corrosion resistance. Applications of Micronic Wire Cloth include liquid and gas filtration, polymer extrusion, aerospace, chemical processing, and medical industries. It is commonly used in filter discs, packs, tubes, and sintered laminates, providing precise particle retention and high flow capacity. Due to its stable structure and fine aperture, Micronic Wire Cloth ensures accurate filtration performance in demanding industrial environments.

Specifications

• Material: Stainless Steel 304, 304L, 316, 316L, Duplex Steel
• Weave Types: Plain Dutch Weave, Twilled Dutch Weave, Reverse Dutch Weave
• Micron Rating: 1 µm – 200 µm
• Wire Diameter: 0.020 mm – 0.35 mm
• Mesh Count: 24 × 110 mesh to 500 × 3500 mesh
• Opening Size: 0.020 mm – 0.400 mm
• Thickness: 0.05 mm – 1.2 mm
• Roll Width: 0.5 m – 2.0 m
• Roll Length: 10 m – 50 m per roll
• Filter Forms: Mesh Rolls, Cut Sheets, Discs, Packs, Tubes, Sintered Laminates

Type

• Filter Discs: Used in liquid and gas filtration systems, sizes 5–600 mm diameter.
• Filter Packs: Applied in polymer extrusion and plastic processing, available in 10–200 µm ratings.
• Mesh Rolls: Supplied for large-scale industrial filtration, roll widths 0.5–2.0 m and lengths 10–50 m.
• Cut Sheets: Used in laboratory testing and fine screening, thickness 0.05–1.2 mm with custom dimensions.
• Filter Tubes: Installed in hydraulic and petrochemical filters, diameters 10–200 mm and lengths up to 1000 mm.
• Sintered Laminates: Applied in chemical processing, made with multiple layers, thickness 0.3–3.0 mm.
• Reverse Dutch Weave Mesh: Used for precise fine filtration, mesh counts up to 500 × 3500 and openings 20–80 µm.
• Twilled Dutch Weave Mesh: Provides high-strength filtration for aerospace and medical use, ratings 2–100 µm.
• Plain Dutch Weave Mesh: Commonly used in gas filtration and sieving, mesh counts 24 × 110 to 400 × 2800.
• Cylindrical Cartridges: Applied in oil, gas, and water treatment, diameters 50–250 mm with custom heights.
