Specifications
- Material Grades: We use three main types of Titanium for our expanded metal: Grade 1 (corrosion-resistant), Grade 2 (good balance), and Grade 5 (strongest). The grade affects how strong and resistant the mesh is.
- Mesh Thickness: Our mesh comes in thicknesses from 0.3 mm (thin) to 3.0 mm (thick). The thickness determines the strength and weight of the mesh.
- Strand Width: The solid parts of the mesh range from 0.5 mm to 2.5 mm wide. Strand width affects the strength and how open the mesh is.
- Opening Size: The diamond-shaped holes vary from small (2 mm × 4 mm) to large (20 mm × 40 mm). Opening size is important for filtering or airflow.
- Standard Sheet Size: We usually supply sheets that are 1000 mm wide and 2000 mm long. This is a common size for many uses.
- Custom Sheet Size: We can also make sheets up to 1500 mm wide and 3000 mm long if you need a specific size.
- Open Area: The mesh can be 40% to 80% open space. This affects how much can pass through the mesh.
- Weight: The weight of the mesh ranges from 1.0 kg/m² to 4.5 kg/m², depending on how thick it is.
- Surface Treatment: You can choose from a natural, polished, colored (anodized), or rough (sandblasted) surface. This mainly changes how it looks and feels.
- Thickness Tolerance: The thickness of the mesh is very precise, with only a small possible difference of ±0.05 mm. This ensures consistent quality.
Titanium Expanded Metal Technical Specification(partly):
| Style | Strand Width(in.) | Sheet Sizes | Sizeof Bridges Center to Center (in.)Width Length | Strand Thickness (in.) | Gauge | Size of Opening (in.) | Percent Open Area |
| 1/4 inch 1/4inch | .086 .080 | 4′ x 8′ 4’x8′ | .25 1.018 .25 1.024 | .029 .042 | 20 18 | .094 x .688 .094 x .688 | 30 to 35 35 to 40 |
| 1/2 inch 1/2 inch 1/2 inch 1/2 inch | .080 .102 .096 .119 | 4′ x 8′ 4′ x 8′ 4’x 8′ 4′ x 8′ | .500 1.260 .500 1.260 .500 1.260 .500 1.245 | .029 .039 .050 .070 | 20 18 16 13 | .350 x 1.08 .302 x 1.05 .302 x 1.02 .300 x .950 | 74 to 79 58 to 63 60 to 65 50 to 55 |
| 3/4 inch 3/4 inch 3/4 inch | .110 .114 .137 .157 | 4′ x 8′ & 10′ 4′ x 8′ 4′ x 8′ & 10′ 4′ x 8′ & 10′ | .923 2.098 .923 2.111 .923 2.078 .923 2.120 | .048 .061 .070 .120 | 16 14 13 10 | .750 x 1.781 .688 x 1.781 .688 x 1.781 .562 x 1.688 | 75 to 80 73 to 78 73 to 78 63 to 68 |
| 1 inch | .106 | 4′ x 8′ | 1 2.508 | .048 | 16 | .780 x 2.06 | 76 to 81 |
| 1.5 inch 1.5 inch 1.5 inch 1.5 inch 1.5 inch | .090 .127 .120 .130 .165 | 4’x 8′ 4′ x 8′ 4′ x 8′ 4′ x 8′ 4′ x 8′ & 10′ | 1.33 3.12 1.33 3.146 1.33 3.105 1.33 3.115 1.33 3.207 | .048 .048 .061 .070 .110 | 16 16 14 13 10 | 1.150 x 3.2 1.062 x 2.75 1.062 x 2.75 1.062 x 2.75 1 x 2.562 | 75 to 80 79 to 84 80 to 85 78 to 83 73 to 78 |

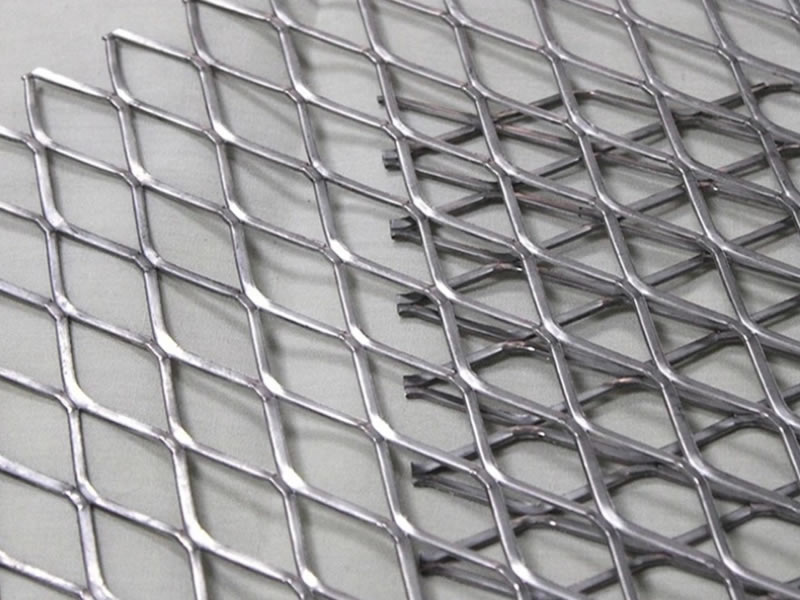

Product Information with Images
Presents robust large apertures (12×25 mm), substantial strand widths of 2.8 mm, and a thickness of 2 mm, specifically tailored for marine environments. Its exceptional corrosion resistance and strength make it ideal for ship decking, walkways, marine equipment enclosures, anti-slip surfaces, and structures exposed to saltwater.
Shows a distinct elongated diamond pattern (15×30 mm), wide strand widths of 3 mm, and a significant thickness of 2 mm, resulting in a visually striking and structurally stable material. It is widely employed in architectural screens, decorative panels, ceilings, and artistic installations that demand a strong visual impact, durability, and minimal maintenance.
Features medium-sized openings (8×16 mm), a moderate strand width of 2 mm, and a thickness of 1 mm, along with a smooth and visually appealing finish. This type is commonly applied in building facades, cladding, sunscreens, and partitions, combining aesthetic appeal with high strength, lightweight characteristics, and weather resistance.
Displays larger mesh apertures (10×20 mm), robust strand widths measuring 2.5 mm, and a thickness of 1.5 mm, engineered for strength and rigidity. It is extensively utilized in perimeter security systems, protective barriers, and anti-vandal fencing, providing superior resistance to cutting, corrosion, and environmental factors.
Presents moderate-sized diamond-shaped openings (5×10 mm), strand widths of 1.2 mm, and a sheet thickness of 0.8 mm. This configuration offers an excellent strength-to-weight ratio along with corrosion resistance, making it suitable for automotive grilles, radiator screens, intake covers, and heat shielding in high-performance vehicle components.
Exhibits fine mesh openings (3×6 mm), thin strand widths (0.8 mm), and a thickness of 0.5 mm, providing a lightweight yet strong structural composition. Its properties are ideal for aerospace shielding applications, vent screens, and lightweight protective coverings where corrosion resistance and durability are essential.
