Food Grade Wire Cloth for Botanical Concentrate Extraction – Stainless Steel Micron Mesh (0.25–2.2 mm)
Food-Grade Material
- This wire cloth is manufactured from stainless steel that meets strict food-grade standards, making it safe and reliable for use in the medical and pharmaceutical industries.
Application in Botanical Concentrates
- Specially designed for extracting botanical concentrates, this mesh ensures precise separation, consistent filtration, and high yield for medical applications.
Micron Aperture Sizes
- 220 microns
- 190 microns
- 160 microns
- 120 microns
- 90 microns
- 73 microns
- 45 microns
- 25 microns
304 Stainless Steel Wire Cloth – Twill Dutch & Five Heddle Weave Mesh (320#, 360#, 108×59, 38×38)
We offer customized stainless steel wire cloth specifications to meet specific filtration and screening requirements across multiple industries.

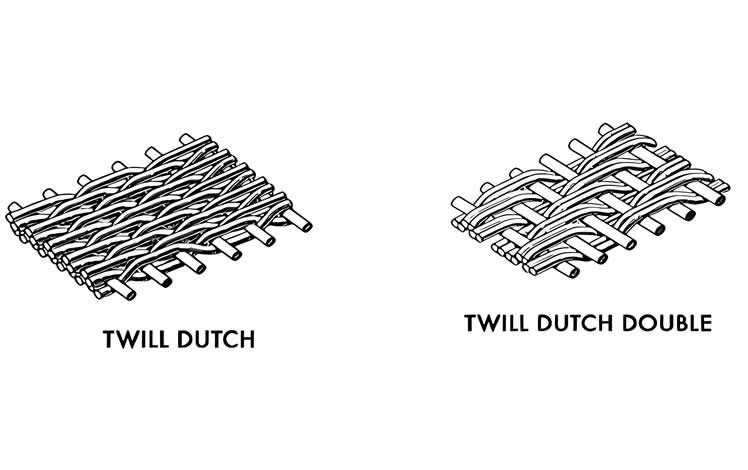

Twill Dutch Weave Wire Cloth
- Gauge 320# (81 × 780 Warp x Weft Count)
- Gauge 360# (91 × 787 Warp x Weft Count)

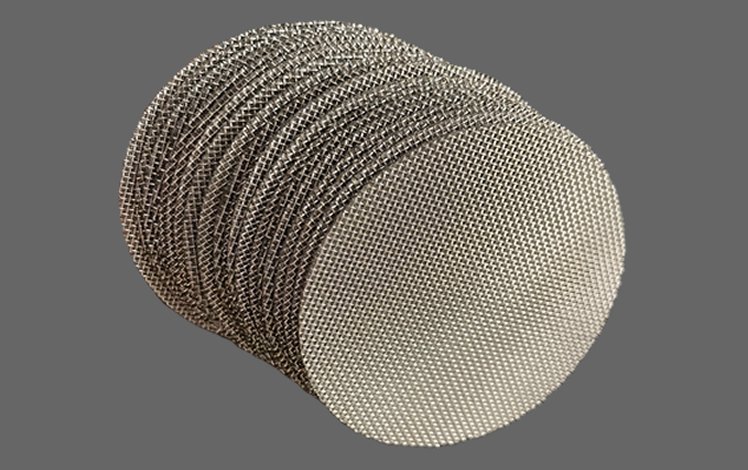

Five Heddle Weave Wire Cloth
- 108 × 59 mesh, wire diameter 0.152 mm
- 38 × 38 mesh, wire diameter 0.15 mm
Stainless Steel Wire Mesh Weaves – Reverse Dutch, Twilled, and Dutch Twilled
Reverse Dutch Weave – Grade 316 Stainless Steel Wire Mesh
- 625 × 135 mesh, wire diameter 0.04 × 0.13 mm, standard roll size 1 m (or 1.22 m) × 30 m.
- 600–720 × 100–135 mesh, wire diameter 0.03–0.04 mm × 0.12–0.14 mm, standard roll size 1 m (or 1.22 m) × 30 m.
Twilled Weave – Grade 304 / 316 Stainless Steel Wire Mesh
Twilled Weave stainless steel wire mesh allows each wire to pass over two and under two wires, creating a strong and dense mesh. Available in both 304 and 316 stainless steel, it balances durability with chemical resistance.
- Specification: 280 mesh with wire diameter 0.04–0.055 mm.
- Standard Roll Size: 1 m × 30 m or 48 inch × 30 m.
Dutch Twilled Weave – Grade 304 / 316 Stainless Steel Wire Cloth
Dutch Twilled Weave stainless steel mesh combines the features of Dutch and Twill weaves, producing a highly compact structure with superior filtration efficiency. Both 304 and 316 stainless steels are available, offering resistance to heat, pressure, and corrosion.
- 270 × 2000 mesh, wire diameter 0.04 × 0.028 mm, roll size 1 m or 48 inch × 30 m / 15 m.
- 280 × 2000 mesh, wire diameter 0.036–0.04 mm × 0.025–0.028 mm, roll size 1 m or 48 inch × 30 m / 15 m.
- This mesh is suitable for ultra-fine filtration in industries such as petrochemicals, pharmaceuticals, and food processing.
